Compact Design up to 300 m³/h

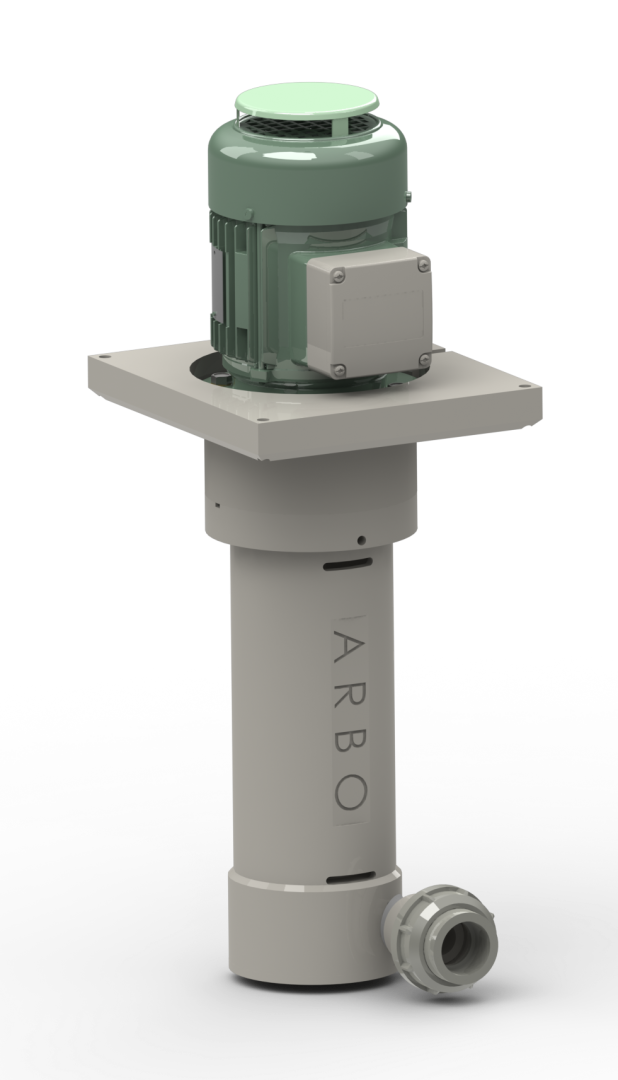

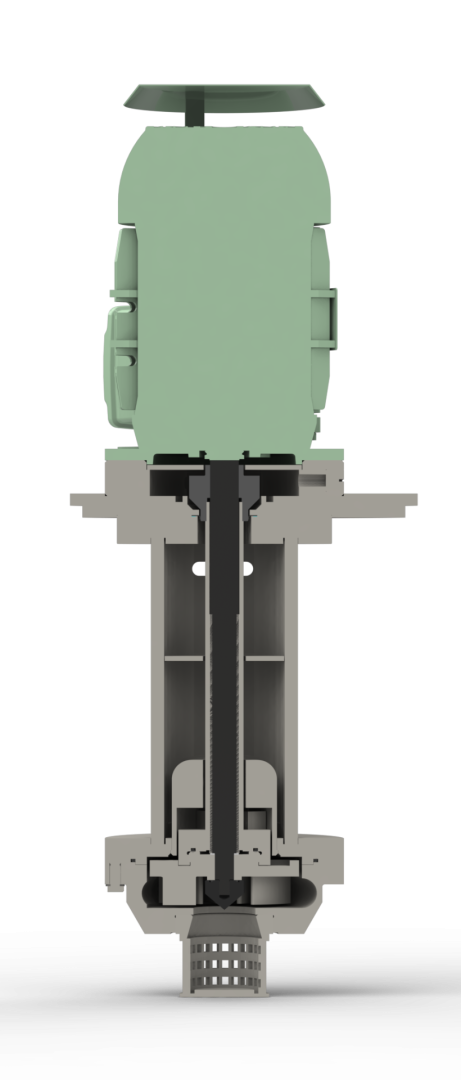

In this series, the pump is directly mounted to the motor flange by means of a plastic pump bracket. The pump shaft is integrated with the motor shaft, ensuring optimum alignment and maximum stability. Thanks to the reduced number of components compared to conventional pumps with a bearing housing, maintenance requirements are exceptionally low.
Applications
Suitable for all transfer and circulation applications involving corrosive liquids, including media containing a high concentration of solids or slurries with medium viscosity. This pump series is equipped with a modern semi-open impeller that is mounted on the shaft independently of the direction of rotation.
Materials
PPH is the standard material, providing excellent chemical resistance and suitability for a wide range of applications. For highly abrasive liquids with a high solids content, impellers can be manufactured from High Molecular Weight Polyethylene (HMPE) on request.
For highly corrosive acid mixtures at elevated temperatures, the pump can also be supplied in solid PVDF.
